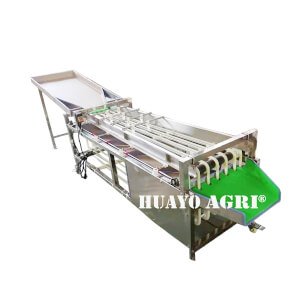

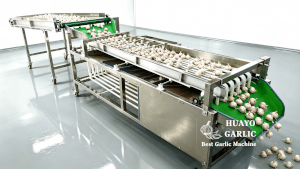

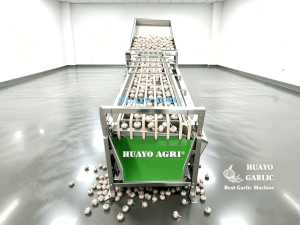

The Garlic Bulb Grader apply for grading garlic bulb with sizes. Different garlic bulb size will be sorted and seperated to corresponding material outlets. The sorted garlic bulb can be packed and sell directly. It will save time and labor costs with 80%.
Installed with 7 pathways , which adopts food-grade silicone belt. It is flexible, non-toxic, harmless, and anti-aging. They sort garlic bulb and convey same size out by slop.
All material contact part are stainless steel, and thickening of soft package. It will not damage the garlic bulb during sorting.

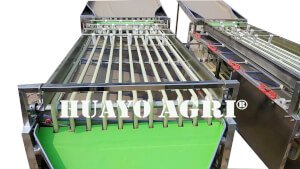

The sorting machine uses a silicone belt on top and an aluminum groove underneath to hold it in place and prevent deviation. The working track is made of food-grade silicone belt, which is highly elastic, non-toxic, harmless, and anti-aging.
All parts in contact with the garlic are thickened and padded to prevent damage to the garlic during the grading process and to avoid skin discoloration. The grading size is adjustable.
The grading speed is adjustable to achieve maximum accuracy.
Advantages:
- 304 Stainless steel as machine raw material
- Apply for sorting Garlic bulb, fruit and Nuts.
- Home use 220v /380v appliable
- Easy to operate. Only need to press On/Off button
- Adopting hexagonal shaft + hexagonal wheel transmission design, no slippage for life
- Affordable price
Technical Parameter
| Model | 2m 7 Pathways | 2m 11 Pathways |
| Productivity | 2 t/h | 3-5 t/h |
| Sorting Range size | 4-7cm | 5-9cm |
| Motor | 0.75kw 220v/380v | 0.75kw 220v/380v |
| Outsize | 2.2*0.7*1.1m | 2.2*1.2*0.9m |
| Weight | 100 kg | 200 kg |
Garlic Bulb Grading Video

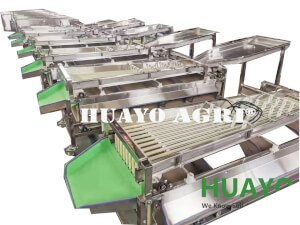

Pictures

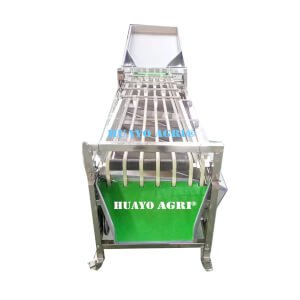

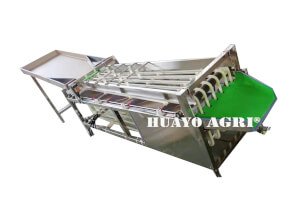

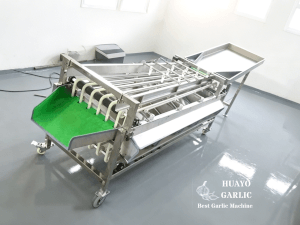

2m 6 pathways, sorting with 6 sizes. 304 Stainless steel get rid of rust .

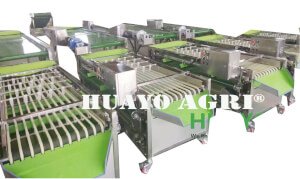

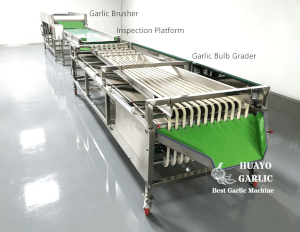

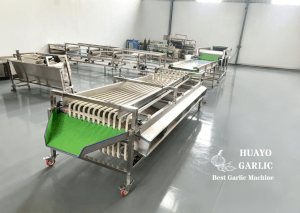

We can install Garlic Brusher, Inspection platform, and Garlic Bulb Grader together to work more efficiently.

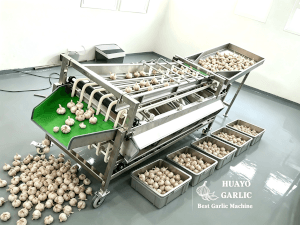

Sorted Garlic bulb
Real Customer Feedback from Canada, USA, Mexico, Australia etc.
“Very well package. Build seem of good quality ”
” My Customer want to buy the Garlic brushing and grading line. We except good quality as what you sold me, good welding, NOT SPOT WELDING, user friend electricity, customize high and length ”
” Your equipment are very good for the price ”

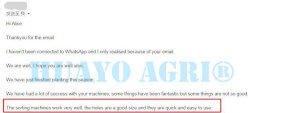

” The sorting machines work very well. the holes are good size and they are quick and easy to use. ”
Garlic Splitter and Clove Sorter
Electric Battery Garlic Seeder
Gasoline Garlic Seeder
HUAYO GARLIC – Your Trusted Expert in Garlic Machinery!
HUAYO GARLIC is specialized in Best Garlic Machine Design and Manufacturing since 2015. We aim to mechanize Garlic growing machines and Garlic Processing Machine for Garlic Growers and Garlic Process Companys.
At present, we manufacture a series of Garlic machines from planting to harvesting, cleaning , grading, and garlic process machines for Commercial Garlic Farm, and Small Family Garlic Farms. which are Garlic Splitter and Clove Sorter, Garlic Planter, Garlic Harvester, Garlic Root and Stem Cutter, Garlic Brush Cleaning Machine, Garlic Bulb Grader, Garlic Powder and Granulates Processing Machines, Garlic Peeling Machines, Black Garlic Machines.
Welcome to contact us for customize the black garlic machines you need.
