Single Clove Garlic Grading Machine
HGB-4S Single Clove Garlic Grading Machine can grade 4-5 tons of Solo Garlic with 5 sizes and shake extra soil on it automaticlly
HGB-4S Single Clove Garlic Grading Machine by HUAYO AGRO can shake extra soil, Convey , and grade 4-5 tons of Solo Garlic with 5 sizes automaticlly.
Solo garlic, also known as single clove garlic, chinese garlic, monobulb garlic, single bulb garlic, or pearl garlic. It has smaller size than nomal big garlic head. Therefore,
We make this Garlic Grading Machine specially for Commercial Garlic Farm and Big Garlic Farm, to sort Single Clove Solo Garlics uniformly and effectively.
The Solo Garlic Grading line includes three main parts:
Firstly, Cleaning & Inspecting. Our machine removes scrap, third grade bulbs, stones and soil before drying and storing.
Secondly, Conveying Garlic to Grading Machine
Thirdly, the Single Clove Garlic Grading Machine has drum with designed hole size to sort the garlic into sizes.
Technical Parameter
| Name | Solo Garlic Grading Machine |
| Model | HGB-4S |
| Capacity | 3-4 t/h |
| Suitable Garlic | Single Clove Garlics, Solo Garlic, Hardneck Garlic, Softneck Garlic |
| Grading sizes | 5 sizes |
| Working size | 9*1.8*1.2 m |
| Weight | 1000 kg |
Working Video
Pictures

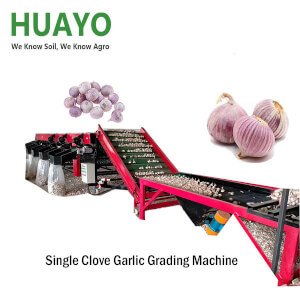

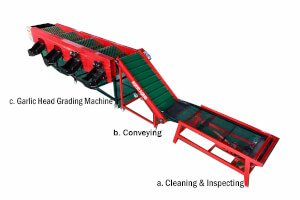

The Single Clove Garlic Sorting Line includes the following 3 machines. the whole line is 9m long, and can process 3-4 tons of Garlic in one hour.
a. Cleaning & Inspecting
The Garlic Shaking Machine removes impurities, cleaning dust, inspect every single damaged, diseased or otherwise bad clove or entire bulb.
b. Conveying.
Belt conveyor will convey Solo garlic to grading machine automaticlly.
c. Garlic Head Grading
The Solo Garlic Grading Machine will sort Garlic head with 5 sizes. There is handle on the outlet to control the Garlic unloading .
You can hang on bags to the outlets and collect garlics automaticlly.
Our garlic grader can be adapted as number of sizes as needed to optimize the crop marketing.
The Garlic processing Line can sort Solo Garlics with good performance.
Garlic Grading Machine details
Safe Control System: Electric control cabinet, motor etc.
Garlic Unloading Belt will convey garlic without mechincal damage

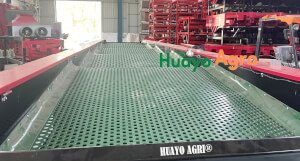

We install PVC Belt with holes for the Solo Garlic Grading Machine. The hole sizes are customized according to your need.
The size of the single clove Solo Garlic varies from approximately 25 to 50 mm in diameter, with an average size between 35 and 45 mm.
For example, We can make the Grading Machine with 2.5cm, 3cm, 3.5cm, 4cm, 4.5cm
The Solo Garlic will fall through the right holes to the belt precisely, and then unload to the bags.
Safe Delivery
HGBM-3 Garlic Cleaning Sorting Machine
HGBS-3 Garlic Seed Splitting and Sorting Machine
