DGT-10 Tractor Garlic Planter can Plant Garlic Seed Precisely and Effectively with tractor. which use spoons to pick up the garlic cloves .
Our planter uses spoons to pick up the individual garlic cloves and drop them into the soil opener. This makes planting much easier but also means that most of the cloves end up planted on their side.
Ideally you want the clove tips pointed upwards, but we’ve found that the majority of the cloves end up turning themselves as they grow. This means that the mature plants end up properly aligned by the time bulbs begin to form in summer.
Technical Parameter
| Name | Tractor Garlic Planter | ||
|---|---|---|---|
| Model | DGT-6 | DGT-8 | DGT-10 |
| Planting Row | 6 | 8 | 10 |
| Row Space | 20 cm | 22 cm | 18 cm |
| Planting depth | 0-6 cm | ||
| Seed Space in one row | 8-16 cm | ||
| Diamension | 1.4*1.39*0.9 m | 1.6*1.39*0.9 m | 2.1*1.39*0.9 m |
| Weight | 120kg | 180kg | 260kg |
Working Video
Pictures

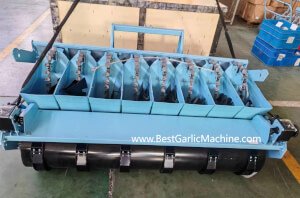

Standard No.2 Seed Spoon can pick most Garlic Seed, and then drop to the field precisely.
Can install bigger or smaller Seed Spoon for your garlic size.
One spoon pick up one Seed each time.
Widen seat for labour to sit at the back of Garlic planter
Easy to adjust planting depth Garlic Planter Three point hitch
The DGT-10 Garlic planter machine sow garlic at > 98% success rate. The high efficiency make it available to plant garlic in large area. It can lay drip tape after planting with lines.
At present, the HUAYO AGRO Garlic Planter has improved the planting rate at 30%-40 %. designed for small and medium-sized farms.
