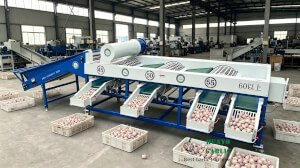

HGB-3 Garlic Bulb Grading Machine by HUAYO AGRO Can grade 3-4 tons of Garlic bulb to 4 sizes automaticlly ,like 45mm, 50mm, 55mm, 60mm
The HGB-3 Garlic Grading Mahcine is a Commercial Garlic Farm Garlic Bulb Grading line. It can sort and grade Garlic bulbs with sizes automaticlly for big garlic farm, and Commercial Garlic Farms.
The Garlic Grading Machine includes two main parts: Garlic Bulb Conveyor, and Garlic Bulb Sorter.
Firstly, drop Garlic bulbs to the conveyor. The Stainless Steel Roller will convey them up to the 4.2m Sorter uniformly. Besides, The Conveyor has two platform to select the bad garlic , and impurities.
Secondly, The Garlic Bulbs Sorting Machine will sort Garlic head with 6 sizes from smallest to largest efficiently. like 45mm, 50mm, 55mm, 60mm , 65mm , 70mm . We can design the sorting sizes with you needs.
Therefore, the HGB-3 Garlic Bulb Sorter will suit for Commercial Garlic Farm and Garlic processing Company well. It will automate and streamline the grading process, saving time and labor for farmers while ensuring consistency and uniformity in the final product.
Advantages:
- Apply for various round material
- 304 Stainless steel material to ensure food healthy
- High productivity, save lobor cost
- Automatic operating
- Not damage garlic bulb
Technical data:
| Name | Garlic Bulb Grading Machine | |
|---|---|---|
| Model | HGB-3 | HGB-8 |
| Bulb Sorting Size | 4 sizes | 6 sizes |
| Productivity | 2-3 t/h | 5-6 t/h |
| Power | 220v/380v 2.2kw | 220v/380v, 3kw |
| Outsize | 5.8*1.2*1.1 m | 7.8*1.2*1.1m |
| Weight | 530 kg | 850kg |
Working video
Pictures

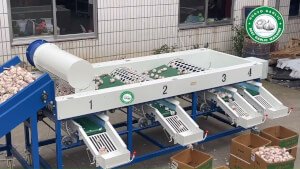

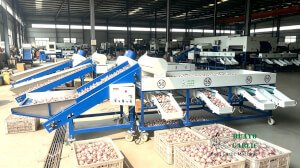

The Garlic Bulb Grading Machine will grade Garlic Bulbs to 4 sizes : 50mm, 55mm. 60mm , 65mm. The Bulb Sizes can be customized accordlingly, like 45mm, 50mm , 55mm , 60mm+

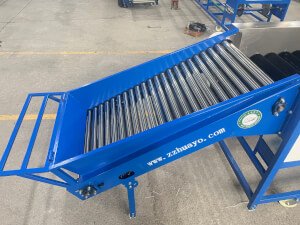

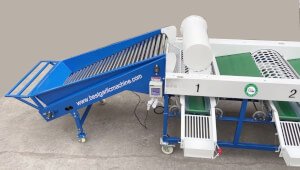

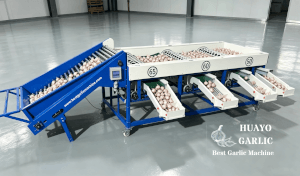

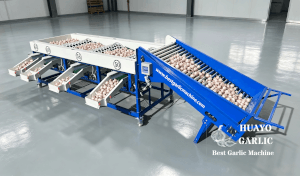

To ensure Garlic Bulb food safety and healthy, we install 304 Stainless Steel Rollers to the Conveyor. They rotate and upload the Garlics uniformly and effectively.

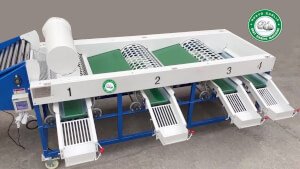

There are one outlet for each size. We install red handle to control unloading garlics conveniently.
We install good quality Air Switch to ensure electricity safety.

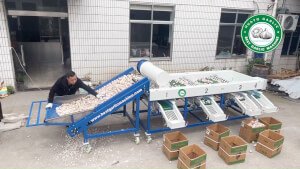

Sorting Garlic Head with the machine. Even Only One labour can grade 3-4 tons of garlic in one hour effectively.
Sorted Garlic Heads with uniform sizes

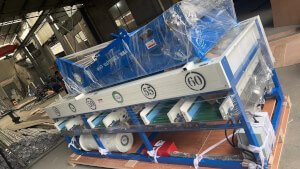

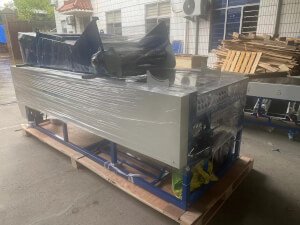

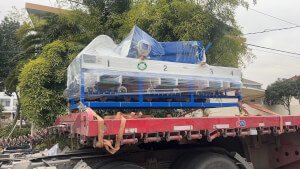

Garlic Bulb Grading Machine ready for delivery
