HGB-8 Garlic Bulb Sorting Machine by HUAYO AGRO can sort 8 tons of Garlic Bulb automaticlly each hour with 6 sizes. By Sorting with sizes, Garlic Farm and Companys can sell garlic with better price and increase yield. More importantly, The Garlic Bulb Sorting Machine will protect Garlic Bulb from mechnical damage .
With the big processing capacity, and excellent performance, the HGB-8 Garlic Grading Line suit very well for Commercial Garlic Farm, and Garlic Process Companys.
Working Video
Technical Parameter
| Name | Garlic Bulb Sorting Machine |
|---|---|
| Model | HGB-8 |
| Bulb Sorting Size | 6 sizes |
| Productivity | 7-8 t/h |
| Power | 220v/380v 2.2kw |
| Outsize | 5.8*1.3*1.1 m |
| Weight | 850 kg |

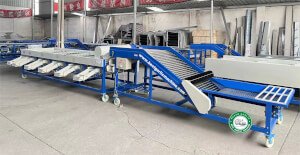

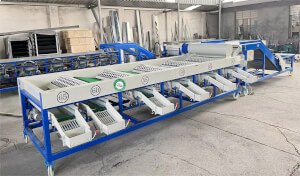

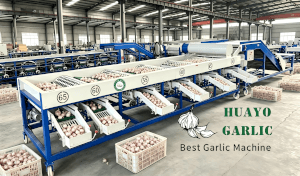

Pictures of the Garlic Bulb Sorting Machine

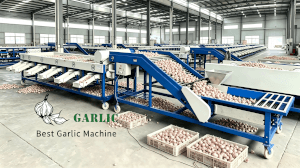

The HGB-8 Garlic Bulb Sorting Mahcine is automatic Garlic Bulb Sorting line. It includes two main parts: Garlic Bulb Conveyor, and Garlic Bulb Sorter.
Firstly, drop Garlic bulbs to the conveyor. The Stainless Steel Roller will convey them up to the 4.2m Sorter uniformly. Besides, The Conveyor has two platform to select the bad garlic , and impurities.

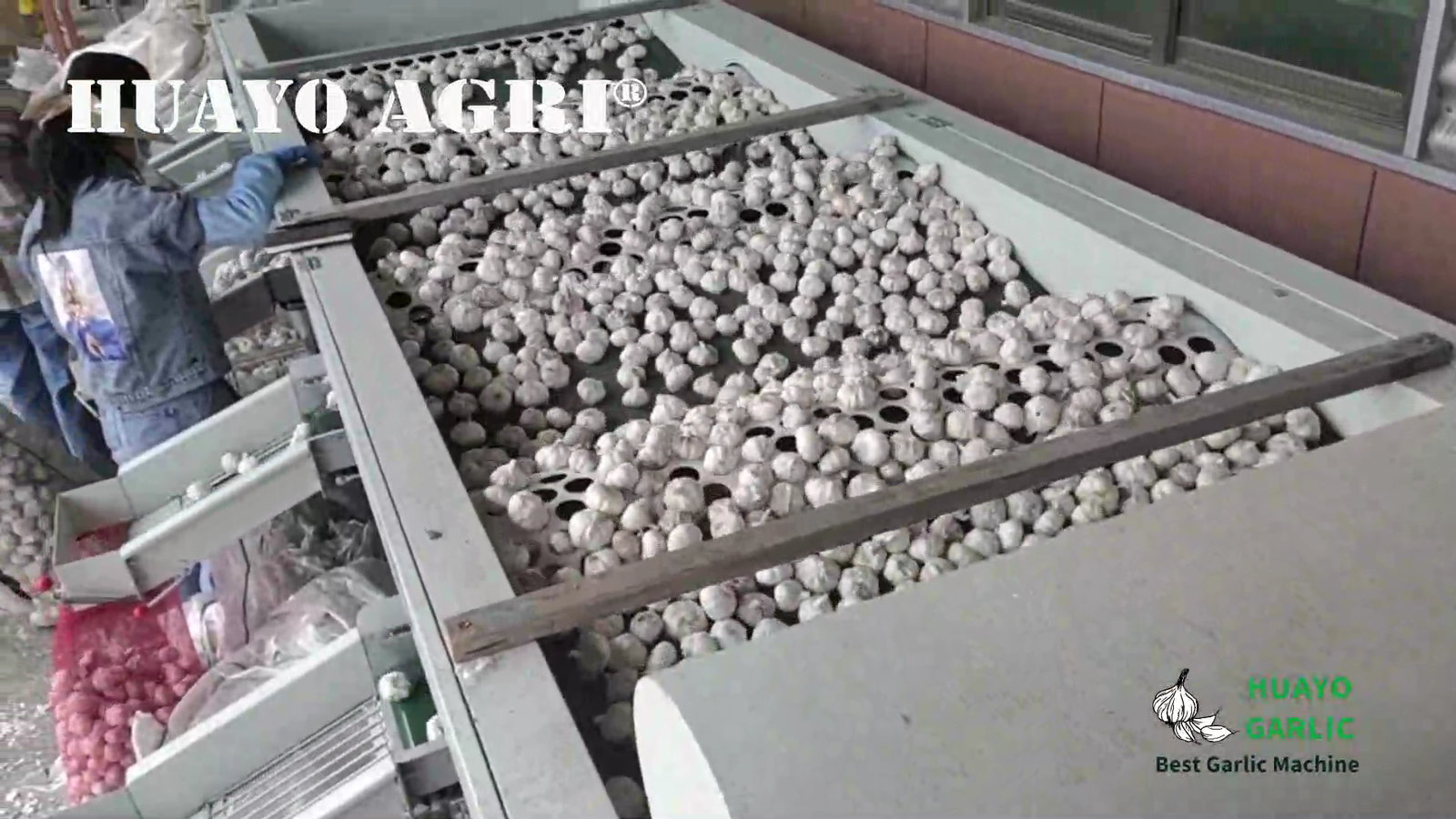

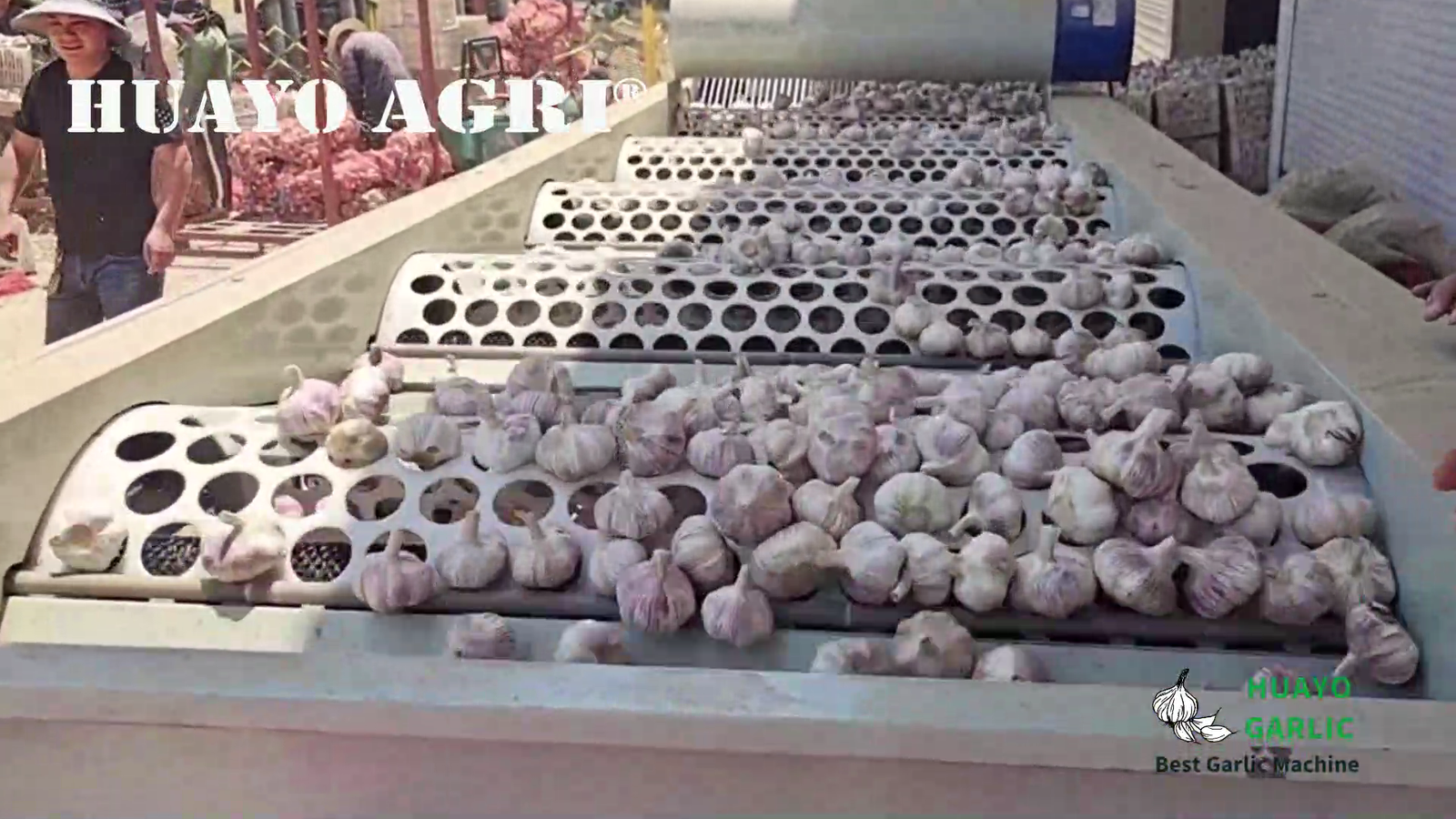

Secondly, The Garlic Bulbs Sorting Machine will sort Garlic head with 6 sizes from smallest to largest efficiently. like 45mm, 50mm, 55mm, 60mm , 65mm , 70mm . We can design the sorting sizes with you needs.
Therefore, the HGB-8 Garlic Bulb Sorter will suit for Commercial Garlic Farm and Garlic processing Company well.
Our Garlic Bulb Sorter Machine revolutionizes garlic processing with precision sorting and efficiency. With advanced technology, it swiftly separates garlic bulbs by size, quality, and condition, streamlining production and ensuring uniformity. Experience enhanced productivity and superior results in garlic processing with our innovative sorting solution.
The whole line is about 10m long. The big machine can transfer the whole garlic and sort with sizes uniformly and effectively.

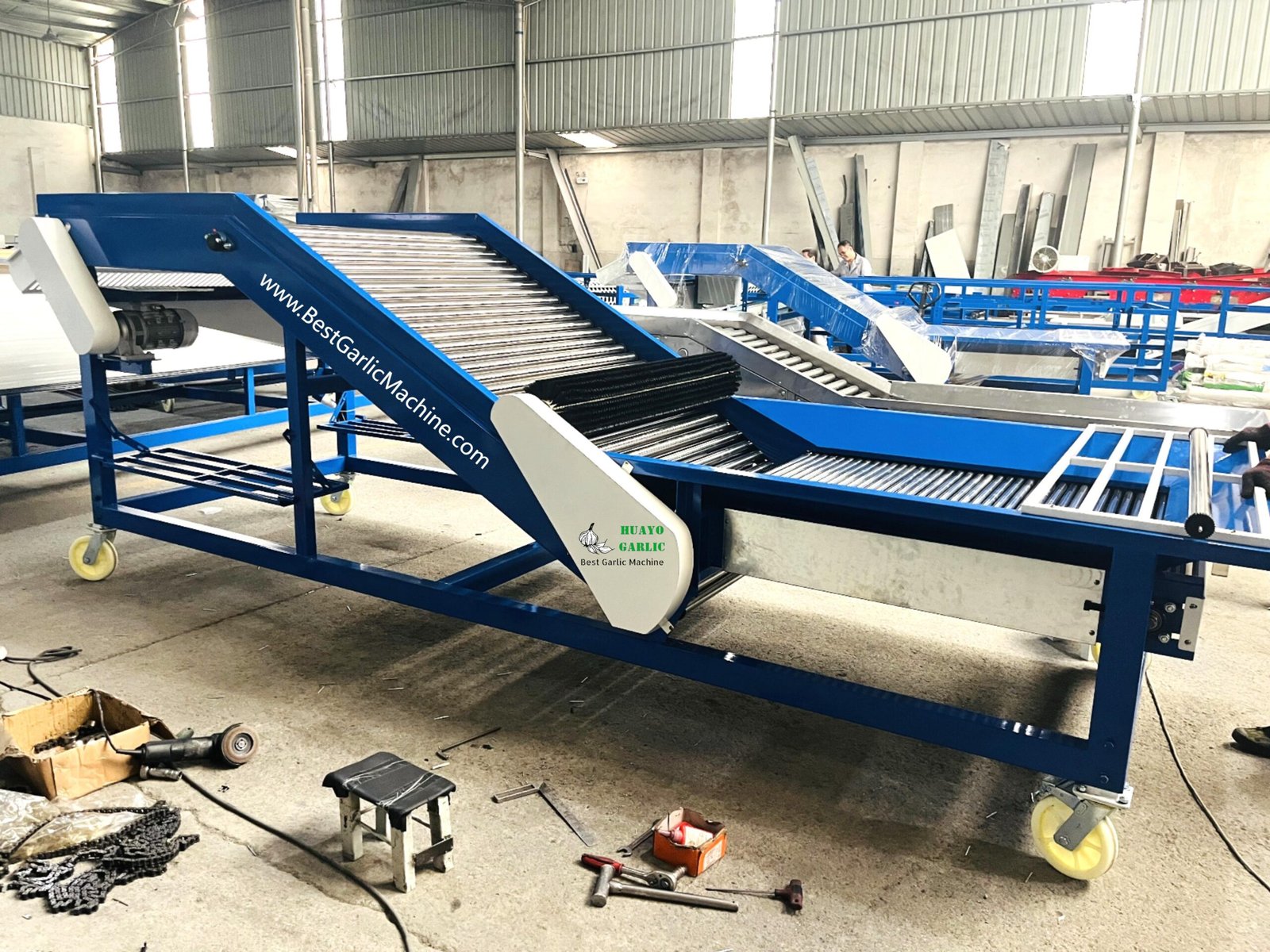

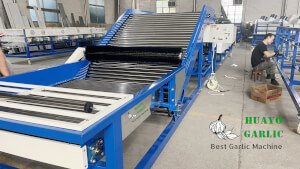

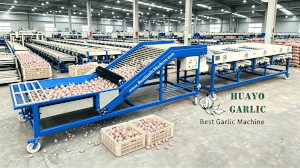

Garlic Bulb Conveyor

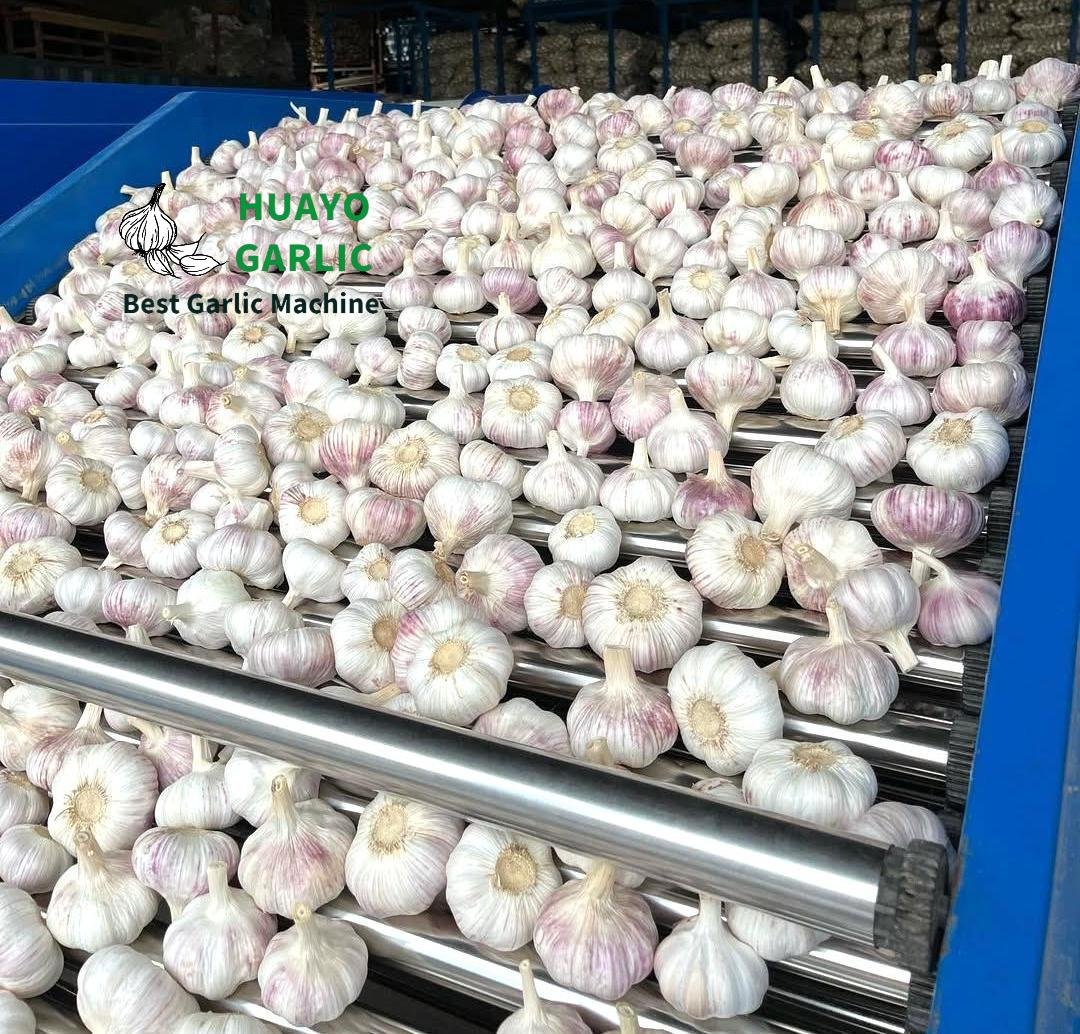

We install Stainless Steel Rollers on the Conveyor. they will rotate and convey the Garlic head uniformly and effectively.
Besides, the Brush will ensure uniformly Garlic Head conveying.
Safe Electricity Control Box will ensure the enough working power, and protect the machine when working.

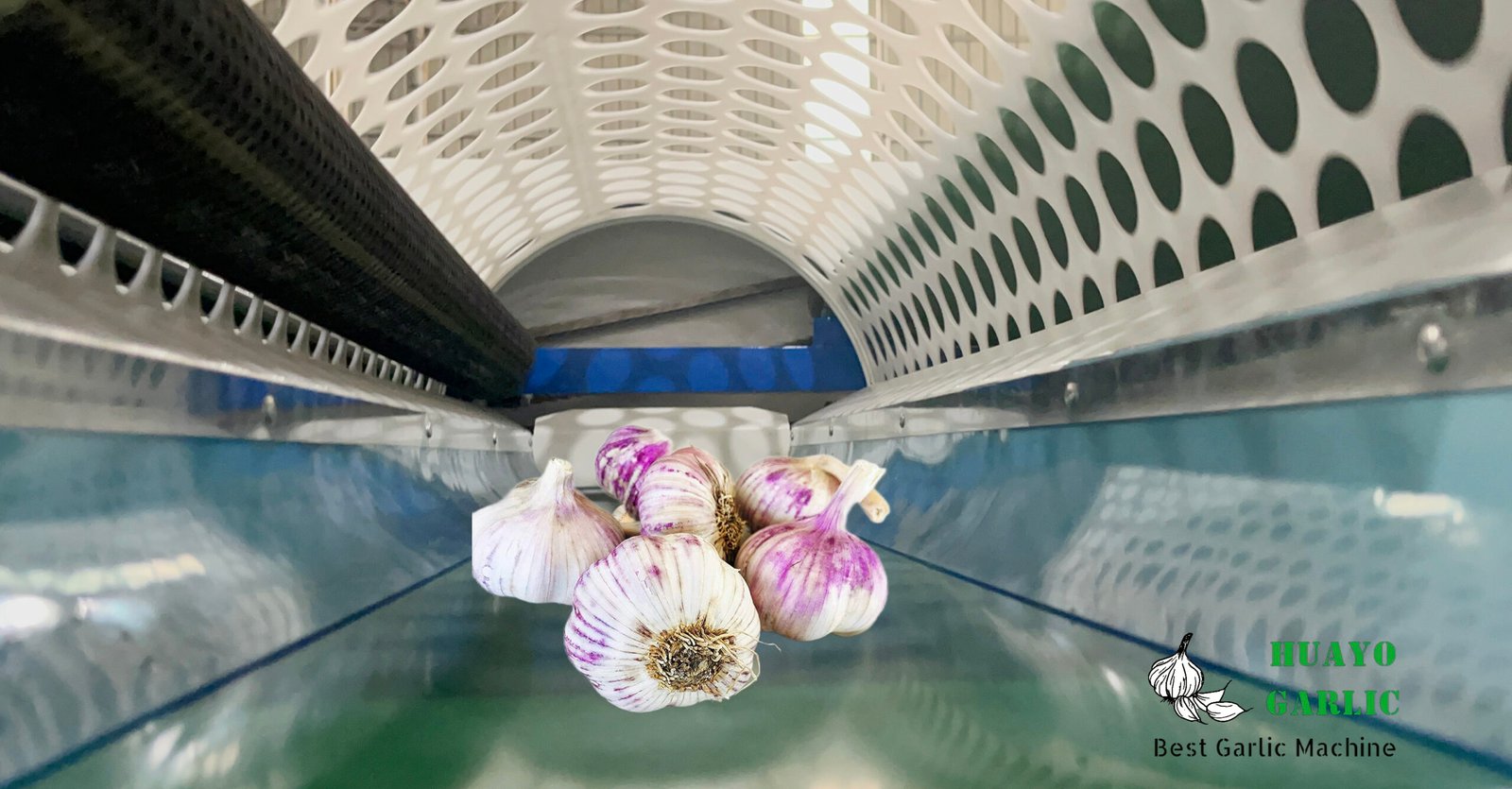

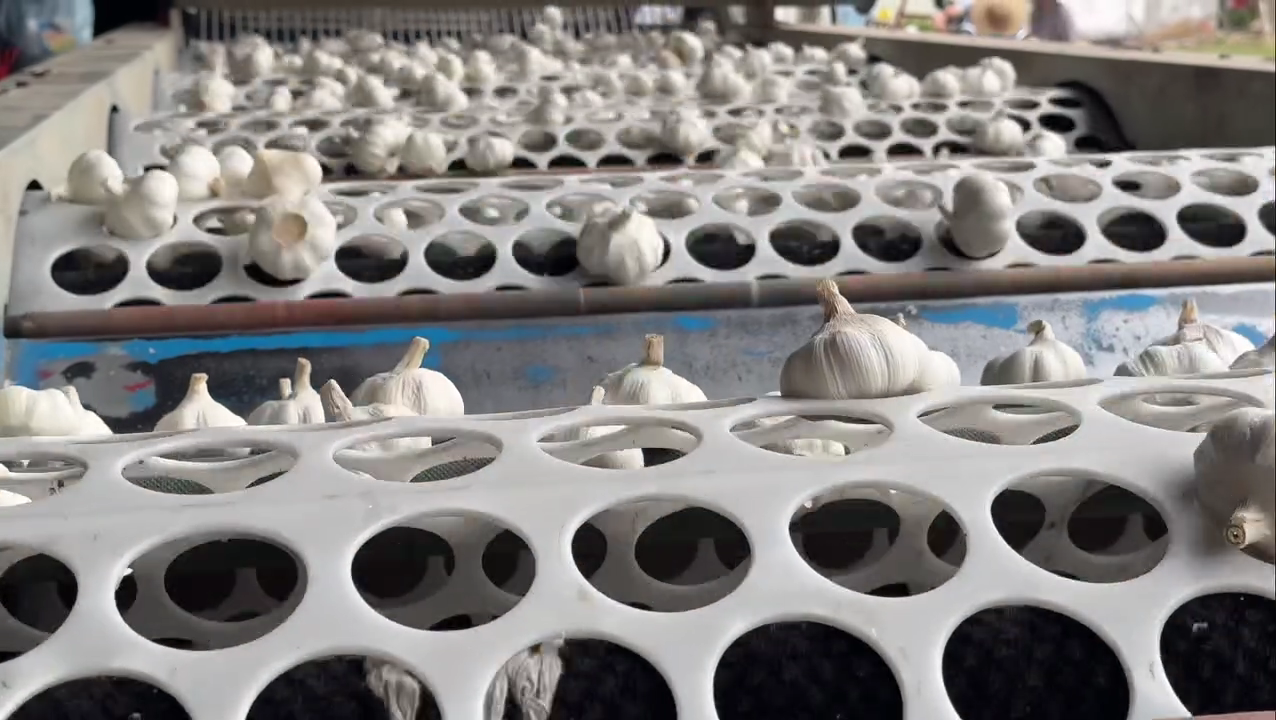

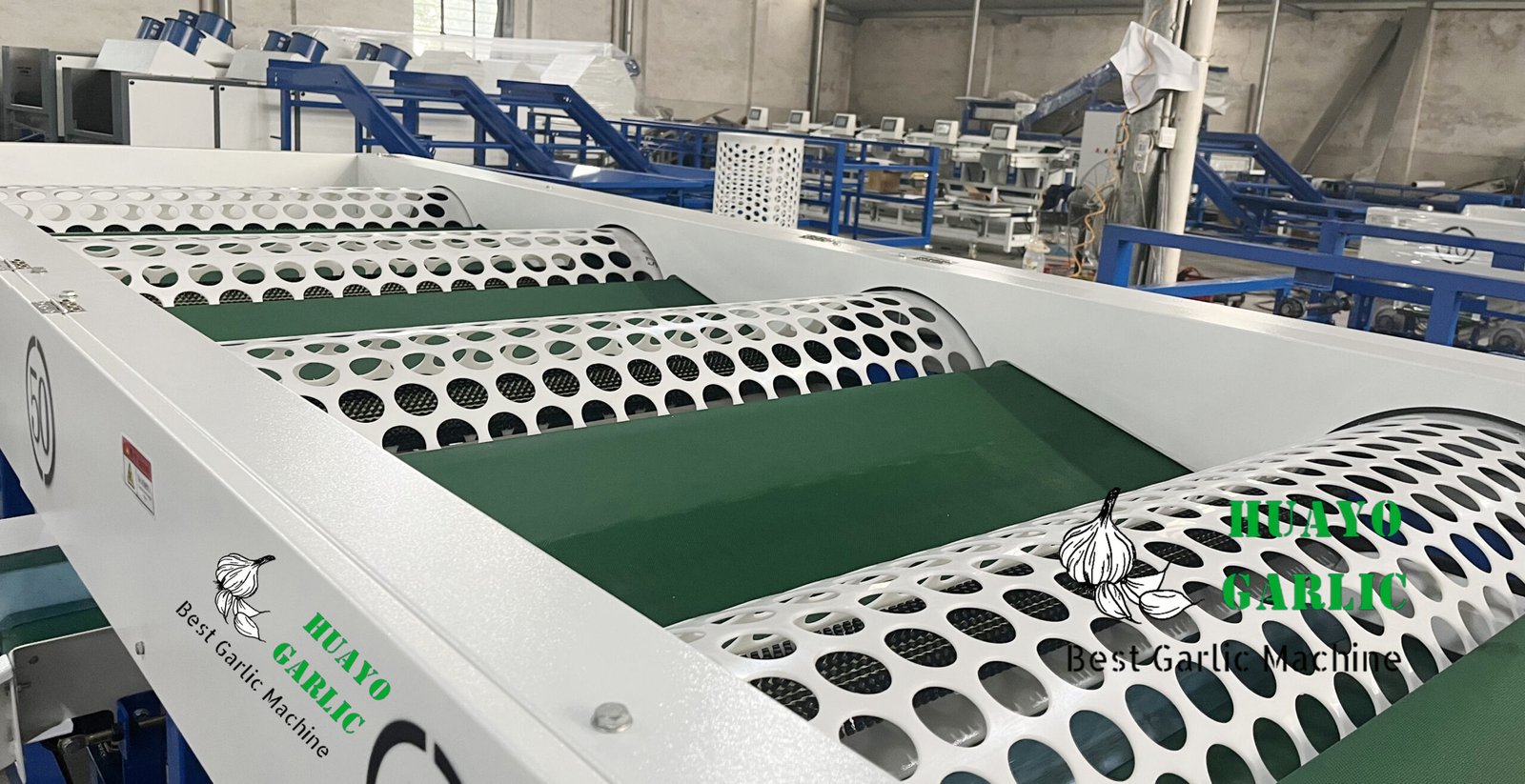

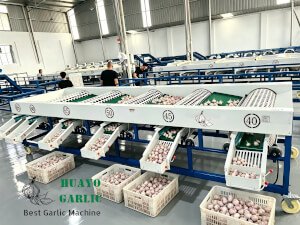

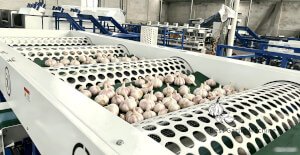

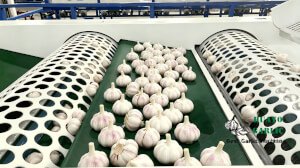

The Garlic Bulb Sorter can grade Garlic bulb with 45mm, 50mm, 55mm, 60mm , 65mm, 70mm . The Sorting sizes can be customized with your need.
What’s more, We install engineer PVC for Garlic Grader Roller . The PVC is durable , long working life. And it will not damage the Garlic head at all.
The Garlic Head outlets has handles at the ends. You can hang on the bag at the outlet to hold Garlics automaticlly.

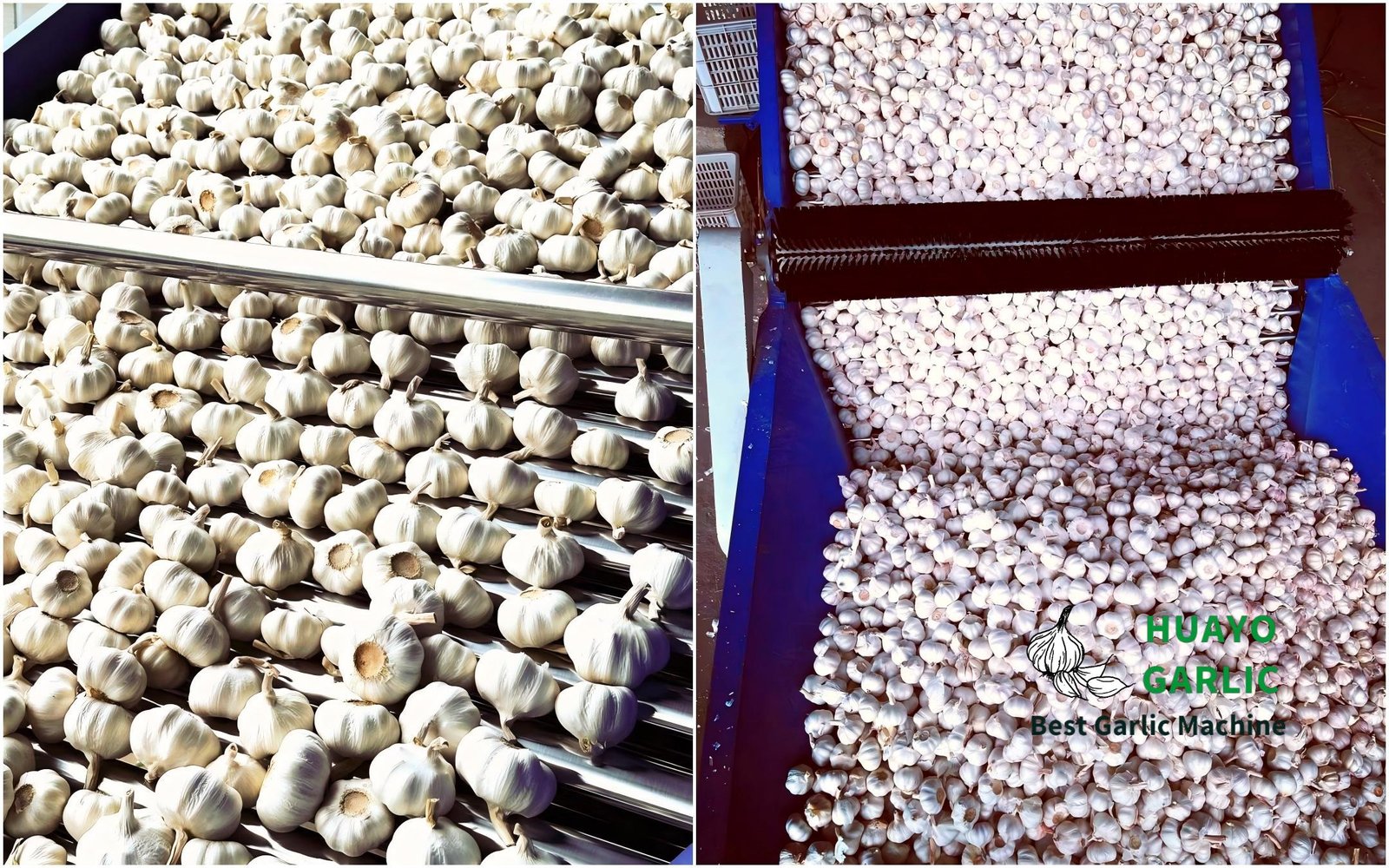

Sorted Garlic Bulbs

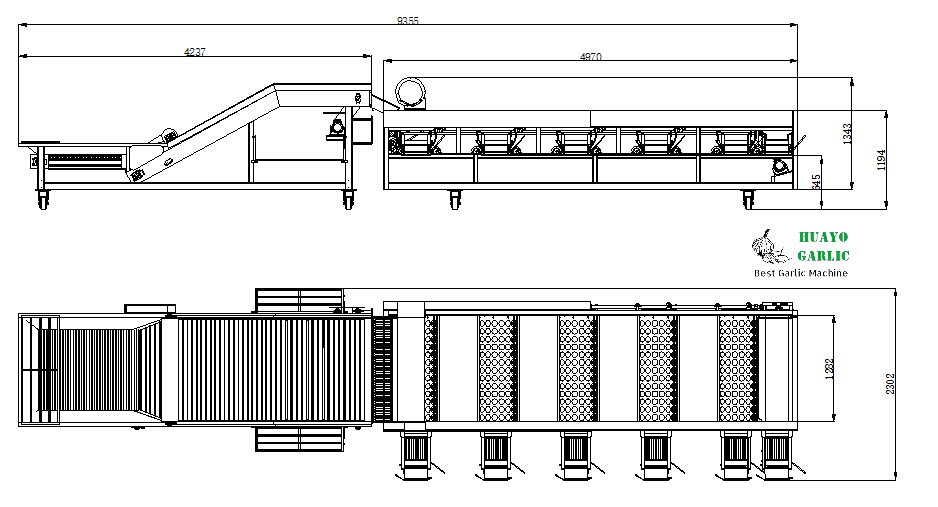

The entire Garlic Bulb Sorting Line is 9.6m. You can prepare the working place big enough in advance.
it will grade your garlic bulbs with amazing performance.

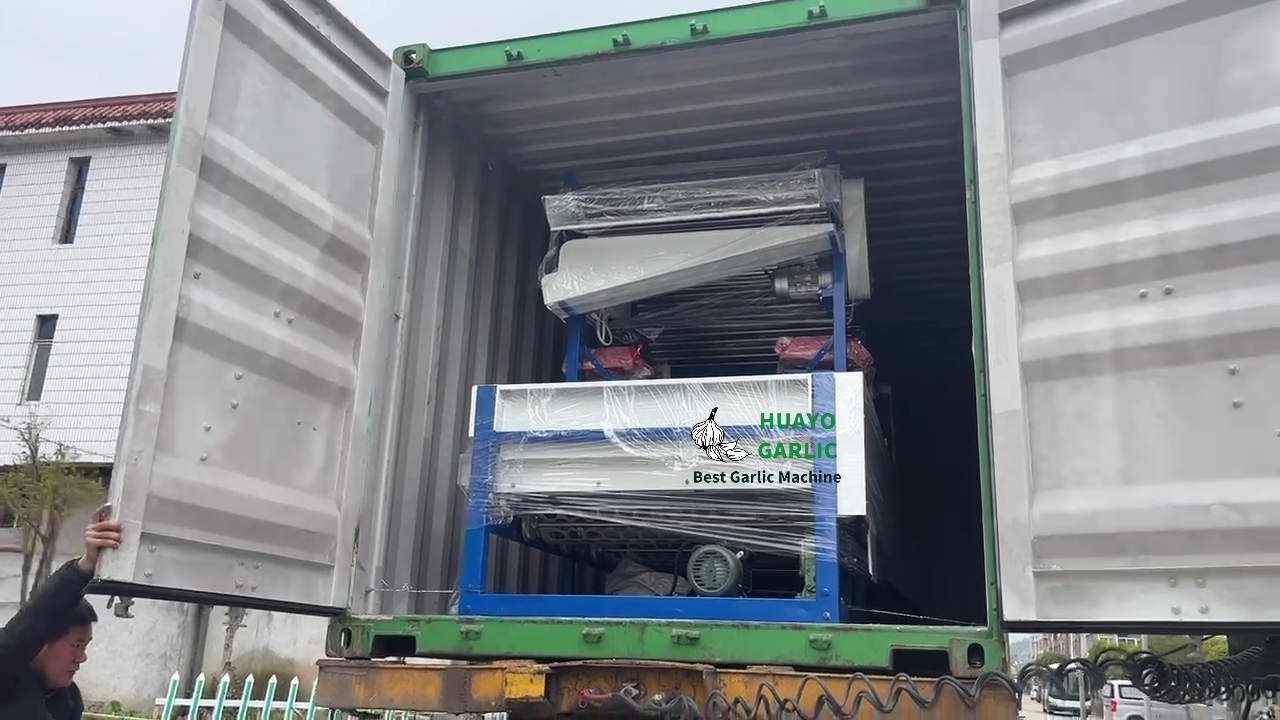

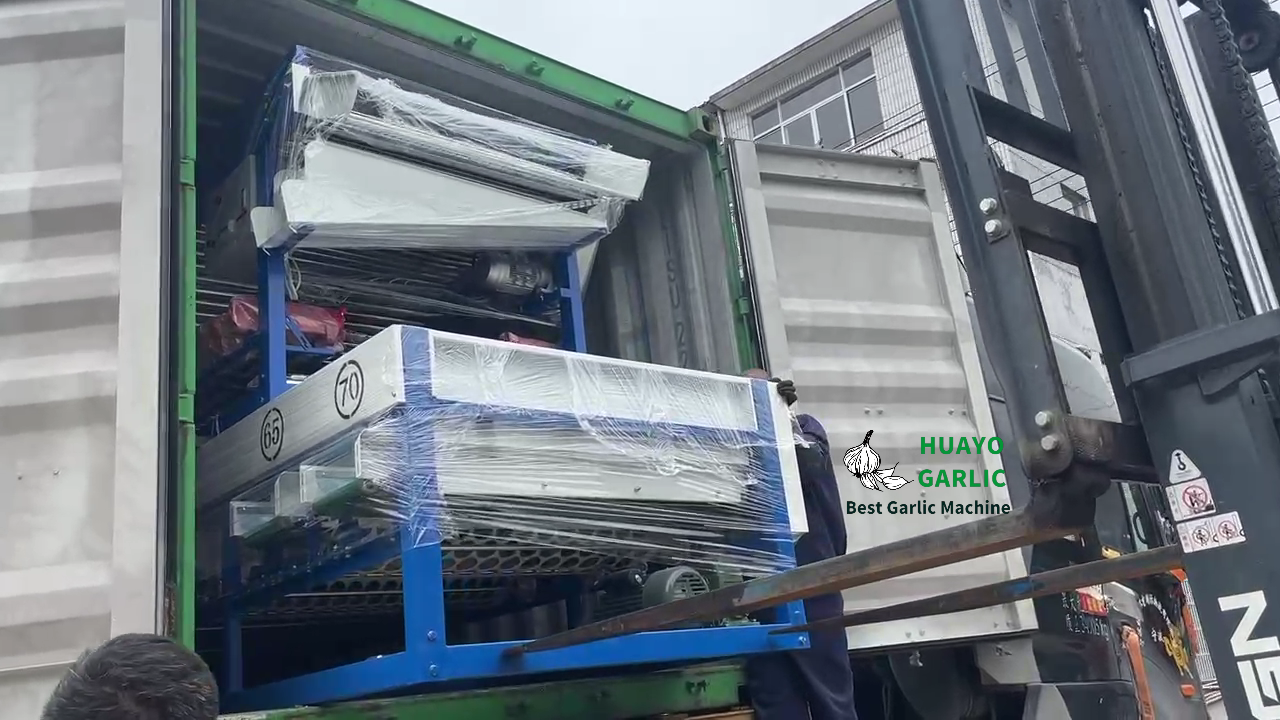

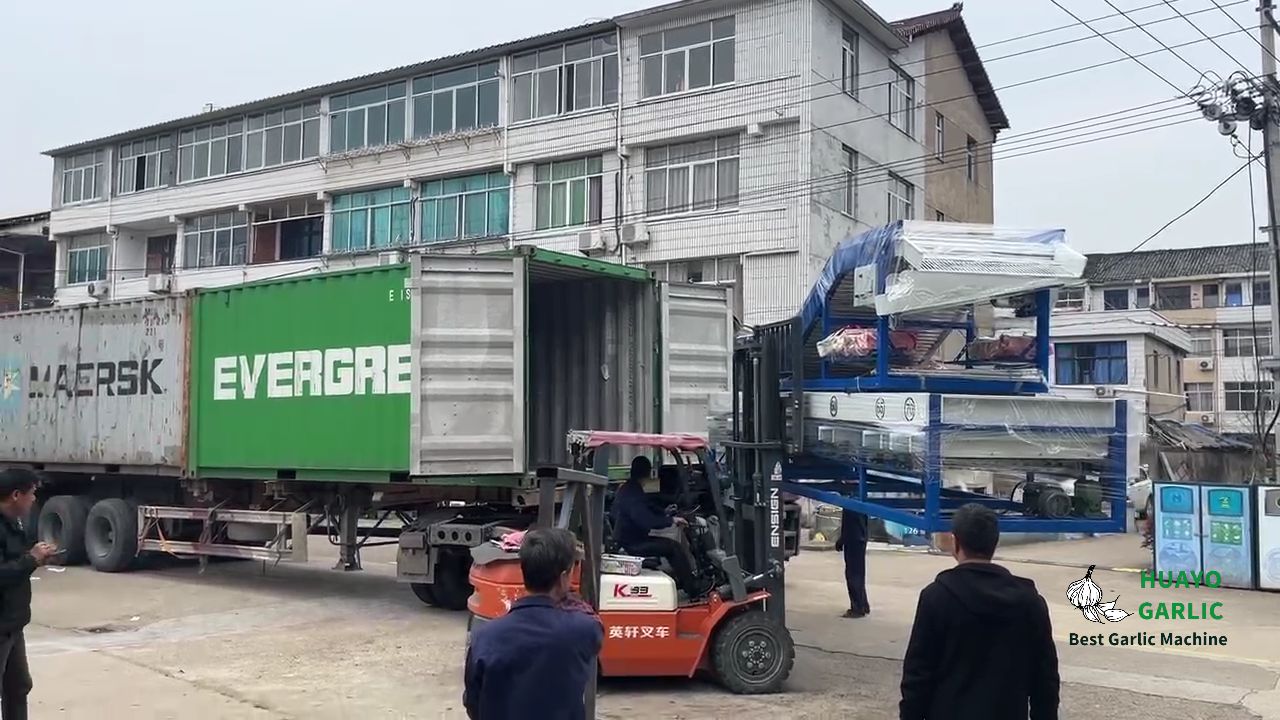

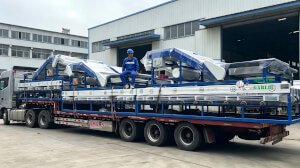

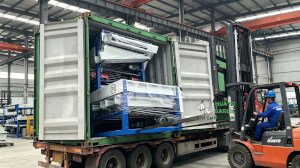

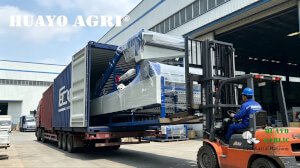

Delivery
HUAYO GARLIC – Your Trusted Expert in Garlic Machinery!
HUAYO GARLIC is specialized in Best Garlic Machine Design and Manufacturing since 2015. We aim to mechanize Garlic growing machines and Garlic Processing Machine for Garlic Growers and Garlic Process Companys.
At present, we manufacture a series of Garlic machines from planting to harvesting, cleaning , grading, and garlic process machines for Commercial Garlic Farm, and Small Family Garlic Farms. which are Garlic Splitter and Clove Sorter, Garlic Planter, Garlic Harvester, Garlic Root and Stem Cutter, Garlic Brush Cleaning Machine, Garlic Bulb Grader, Garlic Powder and Granulates Processing Machines, Garlic Peeling Machines, Black Garlic Machines.
Welcome to contact us for Commercial Garlic machines you need.
HGBS-3 Garlic Seed Splitting and Sorting Machine

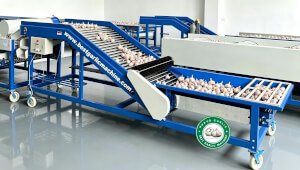

HGBM-8 Garlic Brushing and Sizing Machine
