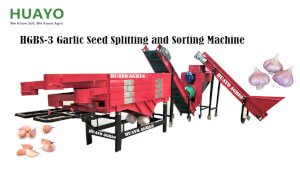

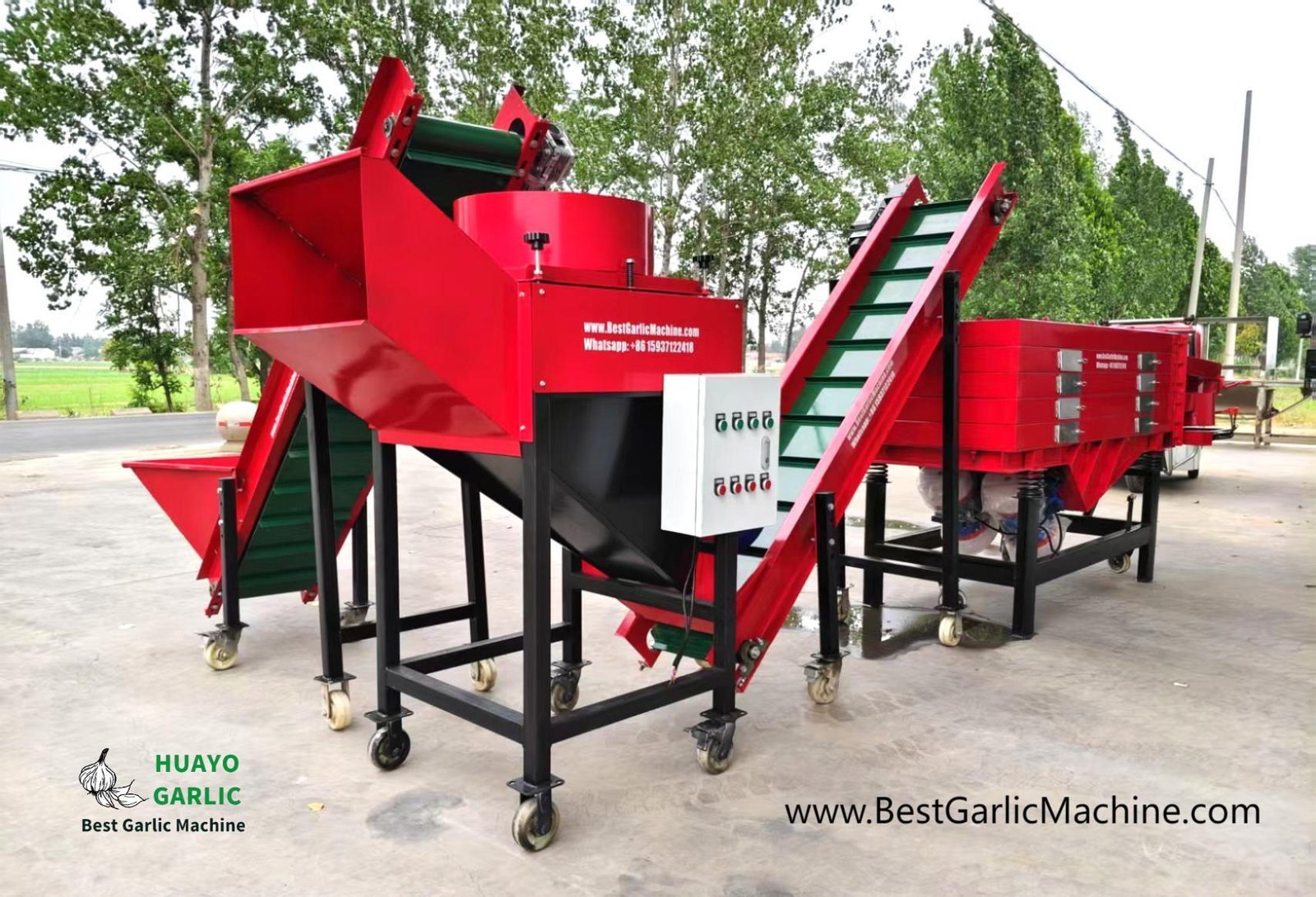

HGBS-3 Garlic Seed Splitting and Sorting Machine by HUAYO GARLIC is an automatic line for Garlic Splitting and Seed grading. It is important and necessary equipment for Commercial Farm , and Garlic Seed Producing Company to prepare excellent Garlic Seed.
The line will can not only split Seed Garlic bulbs to individual cloves, but also sort them with 6 sizes effectively. You can plant uniform size garlic seed to get best yield, and sell different size Seed Garlic with most suitable prices.
The Garlic Splitting and Grading Line can process 2-3 tons Garlic Seed in one hour, and not damage the garlic skin. which has been first preference invest for Industrial Garlic Farm.
Technical Parameter
| Model | HGBS-3 |
|---|---|
| Capacity | 2-3 t/h |
| Function | Break Seed Garlic to cloves and sort with uniform sizes |
| Seed Sorting Sizes | 6 |
| Garlic Skin Breakage | < 2% |
| Motors | 6.5 kw 220v 50hz |
| Outsize | 4500*1600*2056 mm |
| Weight | 1000 kg |
Working video
Garlic Seed Splitting and Sorting Machine Details

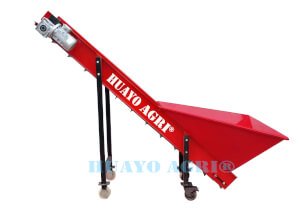

a. Garlic Bulb Conveyor
Convey Garlic Bulb with bucket uniformly

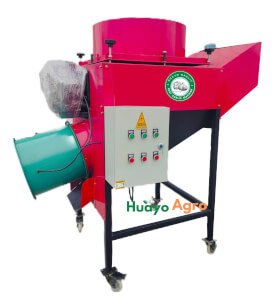

b. Garlic Seed Splitter
The Garlic Seed Splitter can do good work for different variety Garlics, both Softneck and Hardneck Garlics. It can adjust the splitting room space with 4 top Screws and springs. Thus all garlics can be separated to good seed cloves completely and effectively . What’s more, the Silicone Mill inside will protect Garlic clove from mechnical damage.
The Garlic Bulb splitting machine imitates the action of manual splitting, so that all the garlic balls can be separated. It can adjust the gap of the rubber wheel, and the size of the garlic bulb can be used. It has the advantages of not easy to damage the garlic cloves and high separation efficiency. The equipment can divide 1500-2000kg of garlic into garlic cloves per hour, which saves a lot of manual labor and improves people’s working conditions at the same time.
Moreover, the Garlic Separator can suit different Garlic varieties by adjust screws. It can separate different garlics without damage garlic skin. which is important for Garlic planting.

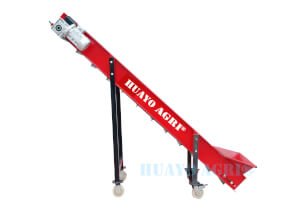

c. Garlic Seed Conveyor
The Belt Conveyor will feed Garlic automaticlly and uniformly. After Separating, The cloves with separated Garlic skin will be conveyed to Grading Machine automaticlly.

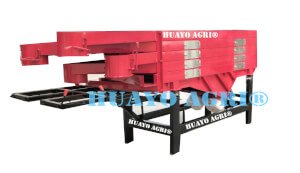

d. Garlic Seed Sorting Machine
The Garlic Clove Grading Machine will sort the Seed cloves with 6 sizes uniformly. It can blow away Garlic skin and shake impurities out at same time. After grading, the cloves can be planted and sell with good performance.
The shaking screens have different hole sizes. they will grade the seed clove with sizes effectively.

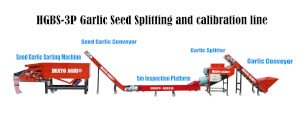

The HGBS-3P Garlic Seed Splitting and Calibration Line with a 3-5m customized Inspection Platform.
You can remove every single damaged, diseased or otherwise bad clove or entire bulb before calibrating.

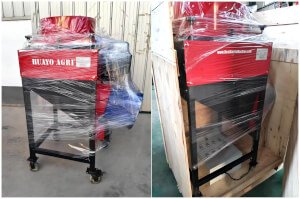

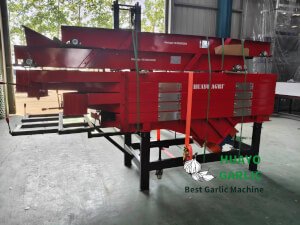

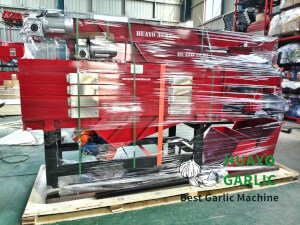

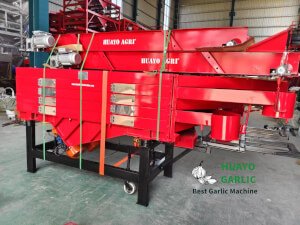

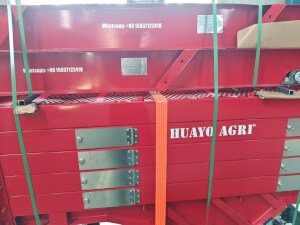

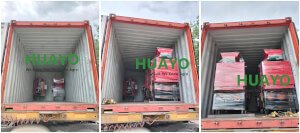

Garlic Seed Splitting and Sorting Machine Ready for delivery
Splitting and sorting Seed Garlic Advantages for planting
Splitting garlic bulbs into individual cloves and sorting them by size is a crucial step in garlic farming and processing.
Firstly, Sorting garlic cloves by size helps in planting uniform-sized seeds, ensuring even growth and development. Larger cloves generally produce larger, healthier bulbs.
Secondly, by sorting cloves, farmers can plant them at appropriate depths and spacings, leading to efficient use of land and resources.
Thirdly, Splitting and sorting allow for the removal of damaged or diseased cloves, which could otherwise affect germination rates or spread disease in the field. Only viable cloves are planted, ensuring a higher percentage of successful germination.
Moreover, Garlic planting machines often require uniform-sized cloves to function efficiently, avoiding blockages and maintaining planting precision. Planting sorted cloves results in a harvest of evenly sized garlic bulbs, which is more appealing for consumers and easier to grade for markets.

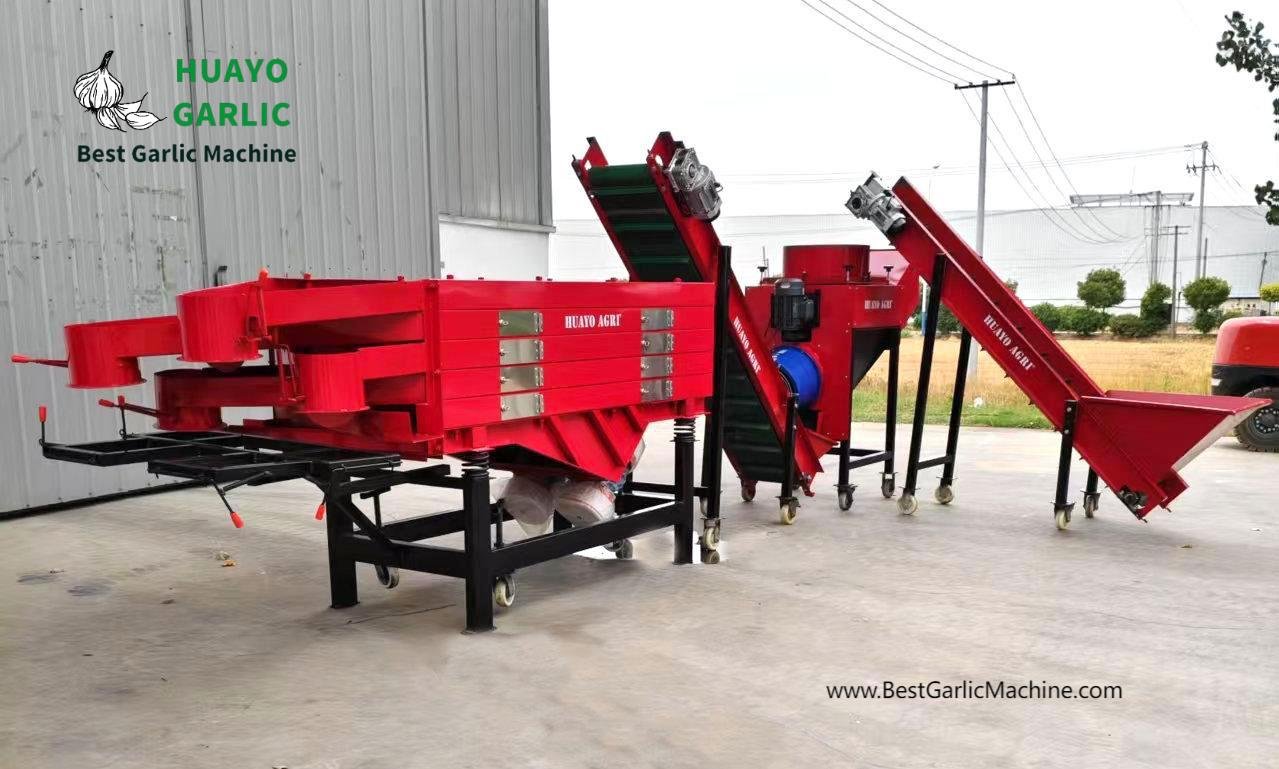

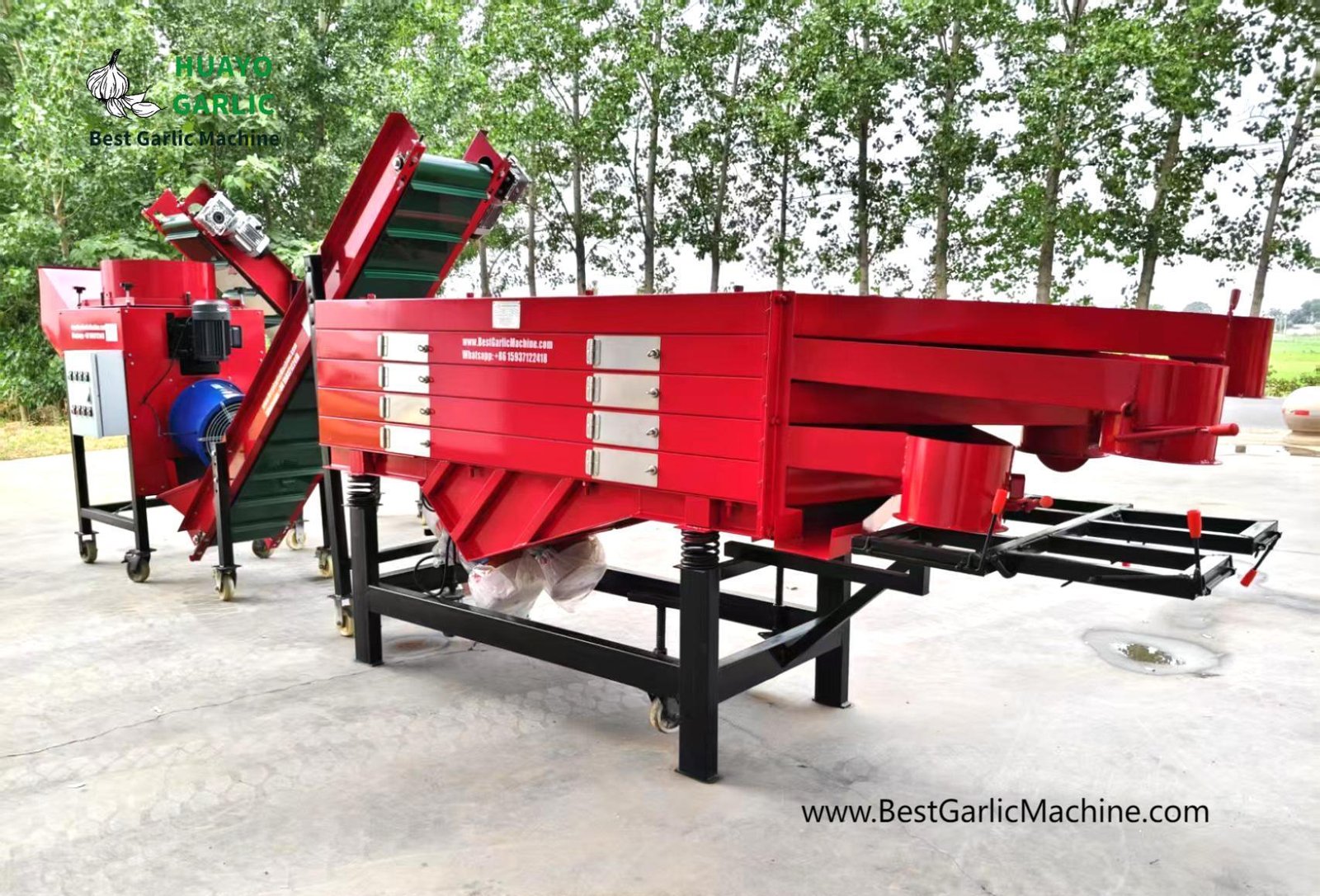

What machines are included in the Garlic Seed Line ?
The Garlic Seed Splitting and Grading Line includes Four machines: Garlic Bulb Conveyor, Big Garlic Splitter, Garlic Clove Conveyor and Clove Sorting Machine. The Four Machines will work together automaticlly to make good cloves for planting . What’s more, The Garlic Separating Line can also be part of the Garlic Peelling Line. By grading the cloves with different sizes, the Garlic Grading Machine will blow away the garlic skin and impurities. Then the clean Garlic Cloves can be conveyed to Garlic Peeler.
The Four machines are controlled by electric control cabinet , which will protect the machines when electric off.
What is the Advantages of HGBS-3 Garlic Seed Splitting and Calibration Machine
The Garlic Splitting and Seed Sorting Machine has advantages with fast splitting, low cost, and no harm to garlic. It provides great convenience for garlic farmers, greatly improves the efficiency of garlic splitting, saves labor costs, and shortens the cost of garlic splitting. Therefore, It is a powerful member of garlic planting machinery and a good helper for garlic farmers.
Graded Garlic Seed ready for planting
